3-piece Filter – Duplex
FP3-DUPLEX
A.C.S. & D. M. n. 174
Application fields
Ensures effective impurity removal through two consecutive filtration phases. The Duplex system allows combining two different technologies (e.g., mechanical + activated carbon) for comprehensive treatment.
Description
Two-stage filtration system, consisting of two plastic housings connected in-line (each comprising a head, bowl, and ring nut), designed for double water treatment applications.
Technical characteristics
Maximum operating temperature:
from + 5°C to + 50°C
Maximum operating pressure:
10 bar
Certifications
A.C.S. & D. M. n. 174
Materials
Head:
Reinforced Polypropylene
Bowl:
SAN
Inserts:
Brass
Uses
Domestic uses:
domestic systems, appliances
Industrial uses:
technical applications
Types of cartridges usable based on treatment
| Type of treatment | Indicated cartridge type | Pressure drop |
|---|---|---|
| SEDIMENTS | WOUND STRING | 25% |
| SEDIMENTS | WASHABLE MESH | 10% |
| ANTI-SCALE | POLYPHOSPHATE CARTRIDGE | 20% |
| CHEMICAL PURIFICATION | ACTIVATED CARBON CARTRIDGE | 60% |
| SOFTENING | RESIN CARTRIDGE | 60% |

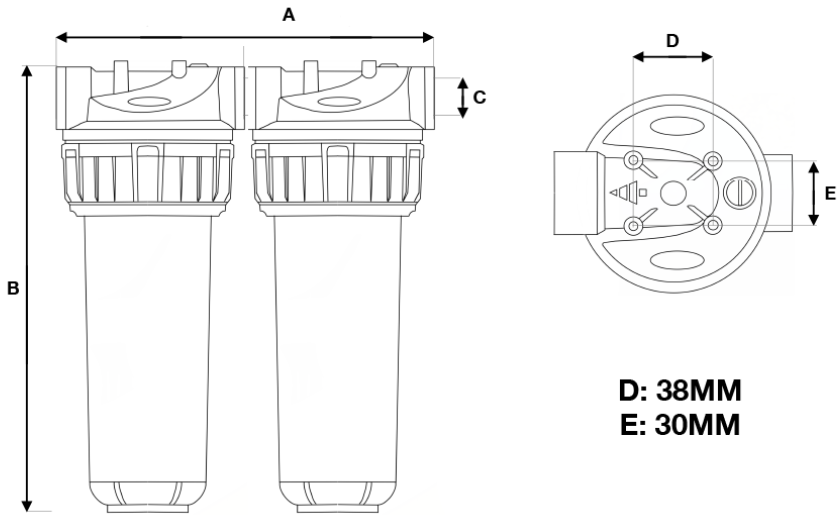

Technical dimensions
D:
38MM
E:
30MM
