Aqua Big
BIG
Description
Linea Big is a line of two-piece housings for medium-sized cartridges, suitable for treating significant water consumption. It is available in the AQUA BIG series in 9”3/4 - 20” - 30” versions, manufactured with either an opaque sump (reinforced PP) or a transparent one (blue SAN).
The heads feature female threaded connections, always without brass inserts, and are equipped with a plastic vent valve. All heads are made of black reinforced polypropylene and are designed for wall mounting.
All housings are supplied without cartridge, with a black head and either a transparent or blue sump.
Other colors are available upon request and for specific quantities.
Technical characteristics
Maximum operating temperature:
from + 5°C to + 50°C
Maximum operating pressure:
8 bar
Uses
Domestic uses:
domestic water treatment
Industrial uses:
small technological systems
Range of available products
| Dimension | Connection (C) | Length (B) | Width (A) | Master Box | Article |
|---|---|---|---|---|---|
| 9 3/4" | 1" | 343 | 185 | 4 | BIG-934-10 |
| 9 3/4" | 1" 1/2 | 353 | 185 | 12 | BIG-934-112 |
| 20" | 1" | 615 | 185 | 4 | BIG-20-10 |
| 20" | 1" 1/2 | 625 | 185 | 4 | BIG-20-112 |
| 30" | 1" 1/2 | 878 | 185 | 6 | BIG-30-112 |

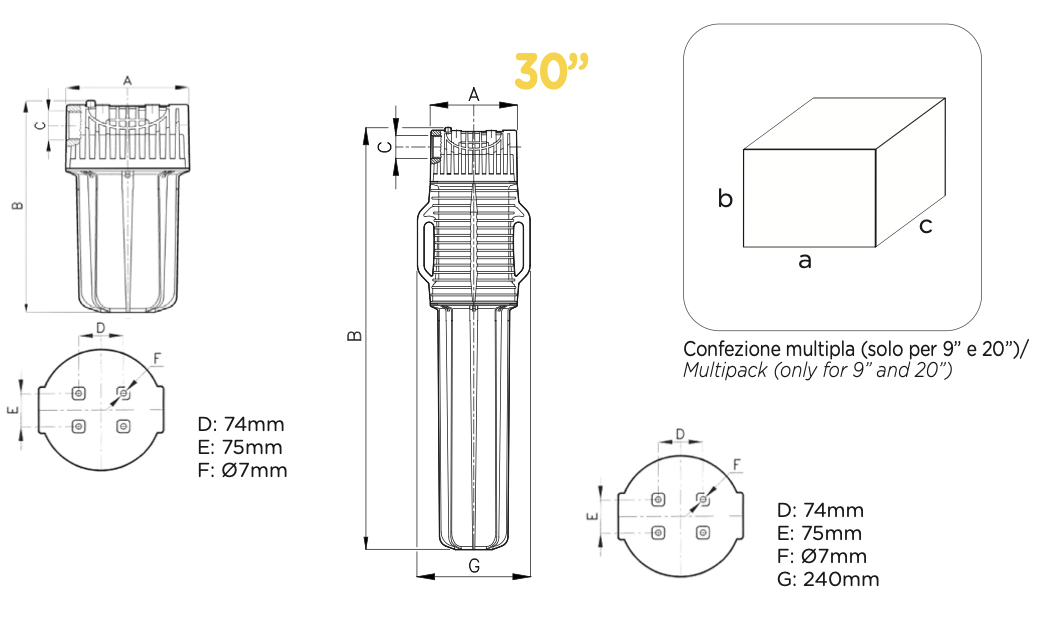

Technical dimensions
head:
Reinforced Polypropylene
bowl:
SAN or Reinforced Polypropylene Blue
