2-piece filter
FP2
A.C.S. & D. M. n. 174
Application fields
The transparent SAN bowl, resistant to impact and wear, allows immediate visual inspection of the internal filter status, facilitating periodic maintenance. Ideal for standard filter cartridges to remove sediments, chlorine, heavy metals, or other contaminants.
Description
Two-piece plastic housing (head and bowl) designed for domestic and technological applications, ideal for treating potable and non-potable water. Made from high-quality materials suitable for contact with drinking water, ensuring reliability, safety, and durability.
Technical characteristics
Maximum operating temperature:
from + 5°C to + 50°C
Maximum operating pressure:
10 bar
Certifications
A.C.S. & D. M. n. 174
Materials
Head:
Reinforced Polypropylene
Bowl:
SAN
Inserts:
Brass
Uses
Domestic uses:
domestic water treatment
Industrial uses:
small technological systems
Types of cartridges usable based on treatment
| Type of treatment | Indicated cartridge type | Pressure drop |
|---|---|---|
| SEDIMENTS | WOUND THREAD | 25% |
| SEDIMENTS | WASHABLE NET | 10% |
| ANTI-SCALE | POLYPHOSPHATE CARTRIDGE | 20% |
| CHEMICAL PURIFICATION | ACTIVATED CARBON CARTRIDGE | 60% |
| SOFTENING | RESIN CARTRIDGE | 60% |

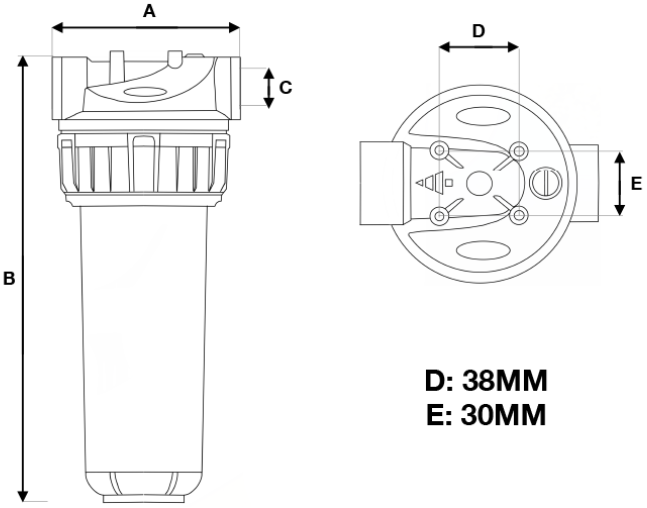

Technical dimensions
D:
38MM
E:
30MM
