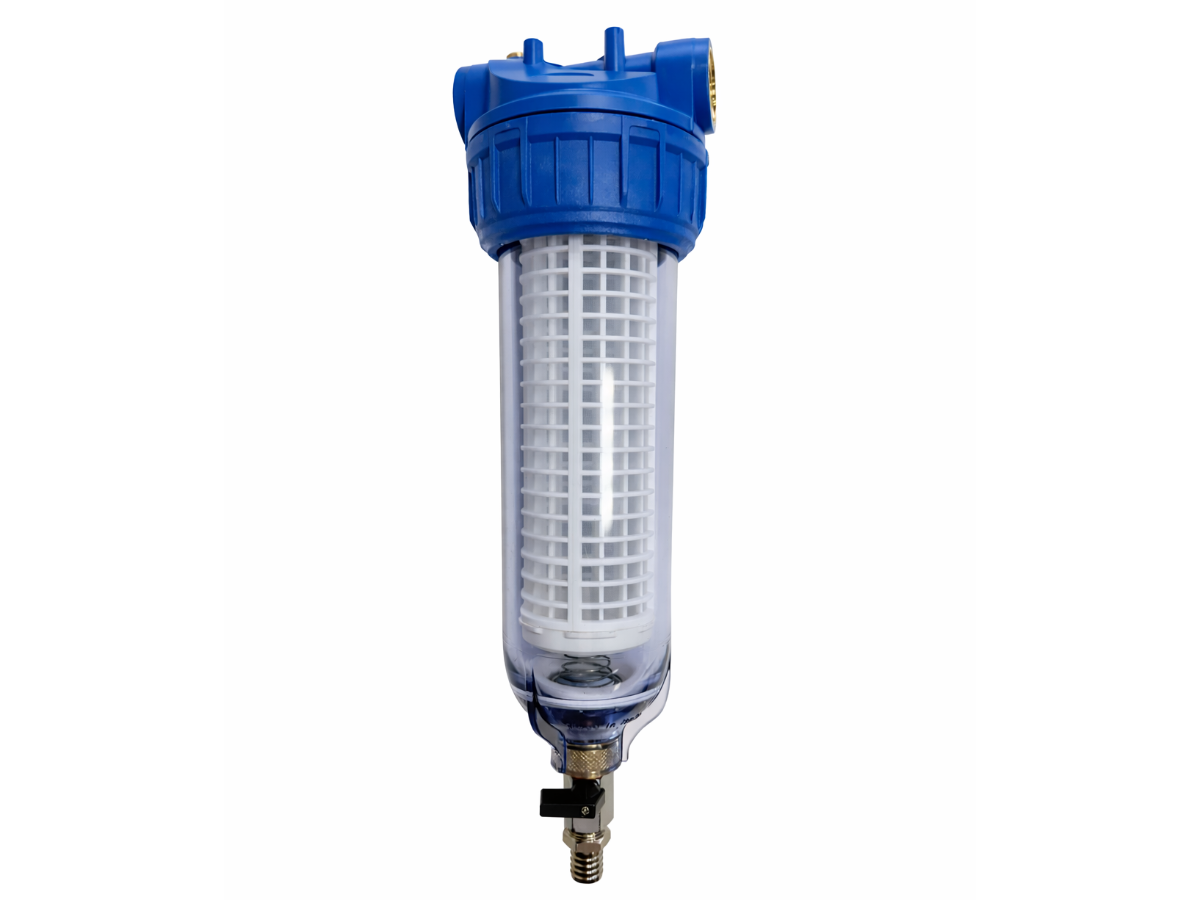

Self-Cleaning Filter Housing
Self-Cleaning
Application fields
Domestic and technical water treatment of potable and non-potable water. Ideal for installations requiring frequent flushing and low-maintenance operation.
Description
Three-part filter housing equipped with a bottom drain valve, enabling quick flushing and cleaning of the cartridge without disassembling the unit. The transparent SAN bowl allows instant visual inspection, extends cartridge service life and reduces maintenance time. Available with brass or reinforced polypropylene head, it is compatible with standard cartridges for removing sediments, chlorine, heavy metals and other contaminants.
Technical characteristics
Certifications
D.M. No. 174 & A.C.S.
Materials
Uses
Range of available products
| Dimension | Connection (C) | Head | Width mm | Master Box | Article |
|---|---|---|---|---|---|
| 9 3/4" | 1/2" | PP | 129 | 12 | FP3-SC-934-12-B |
| 9 3/4" | 3/4" | PP | 129 | 12 | FP3-SC-934-34-B |
| 9 3/4" | 1" | PP | 129 | 12 | FP3-SC-934-10-B |
| 20" | 1/2" | PP | 129 | 6 | FP3-SC-20-12-B |
| 20" | 3/4" | PP | 129 | 6 | FP3-SC-20-34-B |
| 20" | 1" | PP | 129 | 6 | FP3-SC-20-10-B |
| 9 3/4" | 3/4" | Brass | 136 | 12 | FB3-SC-934-34-B |
| 9 3/4" | 1" | Brass | 136 | 12 | FB3-SC-934-10-B |
| 20" | 3/4" | Brass | 136 | 6 | FB3-SC-20-34-B |
| 20" | 1" | Brass | 136 | 6 | FB3-SC-20-10-B |
Frequently asked questions
Is the Self-Cleaning Filter Housing certified?
Yes. The Self-Cleaning Filter Housing holds the following certifications: D.M. No. 174 & A.C.S..
What are the maximum operating temperature and pressure of the Self-Cleaning Filter Housing?
The Self-Cleaning Filter Housing operates up to a maximum temperature of 50°C and a maximum pressure of 10 bar.
Where is the Self-Cleaning Filter Housing manufactured?
The Self-Cleaning Filter Housing is manufactured in Italy by PolyFiltration, a family business with 40 years of expertise, from drinking-water-approved materials certified D.M. No. 174 & A.C.S.
