3-piece Filter – Triplex
FP3-TRIPLEX
A.C.S. & D. M. n. 174
Application fields
The Triplex system allows the use of three cartridges in sequence (e.g., sediments + carbon + anti-scale). Particularly suitable for complex systems or homes with specific advanced filtration needs.
Description
Three-stage filtration system, consisting of three plastic housings connected in-line, designed for applications requiring deep and customizable water treatment.
Technical characteristics
Maximum operating temperature:
from + 5°C to + 50°C
Maximum operating pressure:
10 bar
Certifications
A.C.S. & D. M. n. 174
Materials
Head:
Reinforced Polypropylene
Bowl:
SAN
Inserts:
Brass
Uses
Domestic uses:
complex systems, homes
Industrial uses:
small technological plants
Types of cartridges usable based on treatment
| Type of treatment | Indicated cartridge type | Pressure drop |
|---|---|---|
| SEDIMENTS | WOUND STRING | 25% |
| SEDIMENTS | WASHABLE MESH | 10% |
| ANTI-SCALE | POLYPHOSPHATE CARTRIDGE | 20% |
| CHEMICAL PURIFICATION | ACTIVATED CARBON CARTRIDGE | 60% |
| SOFTNENING | RESIN CARTRIDGE | 60% |

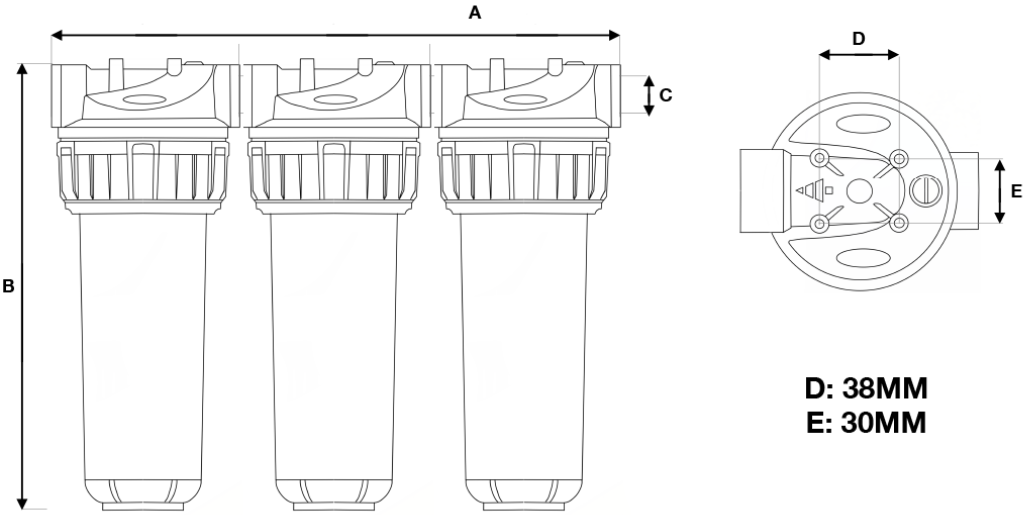

Technical dimensions
D:
38MM
E:
30MM
