2-piece Filter - ECO MINI
FP3-ECO-MINI
A.C.S. & D. M. n. 174
Application fields
Compatible with small-size filter cartridges. Supports in-line or 'L' configuration installation. Ideal for protecting household appliances and small installations.
Description
Mini two-piece 3-way filter housing, designed for domestic and technological water treatment applications. Perfect for tight spaces.
Technical characteristics
Maximum operating temperature:
from + 5°C to + 50°C
Maximum operating pressure:
10 bar
Certifications
A.C.S. & D. M. n. 174
Materials
Head:
Reinforced Polypropylene
Bowl:
SAN
Inserts:
Brass
Uses
Domestic uses:
domestic treatment systems
Industrial uses:
small technological installations
Types of cartridges usable based on treatment
| Type of treatment | Indicated cartridge type | Pressure drop |
|---|---|---|
| SEDIMENTS | WOUND STRING | 25% |
| SEDIMENTS | WASHABLE MESH | 10% |
| ANTI-SCALE | POLYPHOSPHATE CARTRIDGE | 20% |

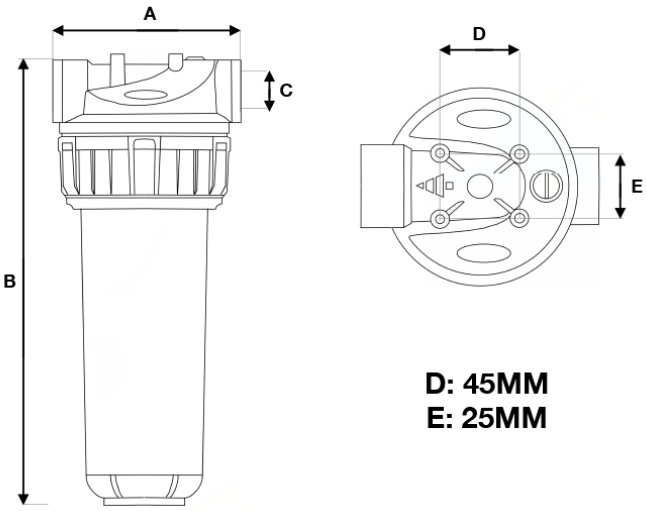

Technical dimensions
A:
95 mm
B:
170 mm
